NetBox — 核心功能分析
本文深入剖析 NetBox 的核心業務功能實作，涵蓋 IPAM、DCIM、Custom Fields、Change Logging、Scripts、Search 等子系統。所有程式碼片段皆來自實際原始碼，並附上演算法複雜度分析。
1. IPAM (IP Address Management)
IPAM 是 NetBox 最核心的功能模組，管理所有 IP 位址空間的階層結構、分配與使用率追蹤。
1.1 Prefix 階層結構
NetBox 的 Prefix 模型以 PostgreSQL 的 inet/cidr 類型儲存網段，並透過 _depth 與 _children 快取欄位維護樹狀結構：
python
# 檔案: netbox/ipam/models/ip.py
class Prefix(ContactsMixin, GetAvailablePrefixesMixin, CachedScopeMixin, PrimaryModel):
prefix = IPNetworkField(
verbose_name=_('prefix'),
help_text=_('IPv4 or IPv6 network with mask')
)
vrf = models.ForeignKey(
to='ipam.VRF',
on_delete=models.PROTECT,
related_name='prefixes',
blank=True,
null=True,
verbose_name=_('VRF')
)
status = models.CharField(
max_length=50,
choices=PrefixStatusChoices,
default=PrefixStatusChoices.STATUS_ACTIVE,
)
is_pool = models.BooleanField(default=False)
mark_utilized = models.BooleanField(default=False)
# 快取的深度與子節點數量
_depth = models.PositiveSmallIntegerField(default=0, editable=False)
_children = models.PositiveBigIntegerField(default=0, editable=False)
objects = PrefixQuerySet.as_manager()
class Meta:
ordering = (F('vrf').asc(nulls_first=True), 'prefix', 'pk')
indexes = (
GistIndex(fields=['prefix'], name='ipam_prefix_gist_idx', opclasses=['inet_ops']),
)Parent/Child 查詢利用 PostgreSQL 的 net_contains / net_contained 運算子：
python
# 檔案: netbox/ipam/models/ip.py
def get_parents(self, include_self=False):
lookup = 'net_contains_or_equals' if include_self else 'net_contains'
return Prefix.objects.filter(**{
'vrf': self.vrf,
f'prefix__{lookup}': self.prefix
})
def get_children(self, include_self=False):
lookup = 'net_contained_or_equal' if include_self else 'net_contained'
return Prefix.objects.filter(**{
'vrf': self.vrf,
f'prefix__{lookup}': self.prefix
})1.2 深度與子節點快取更新

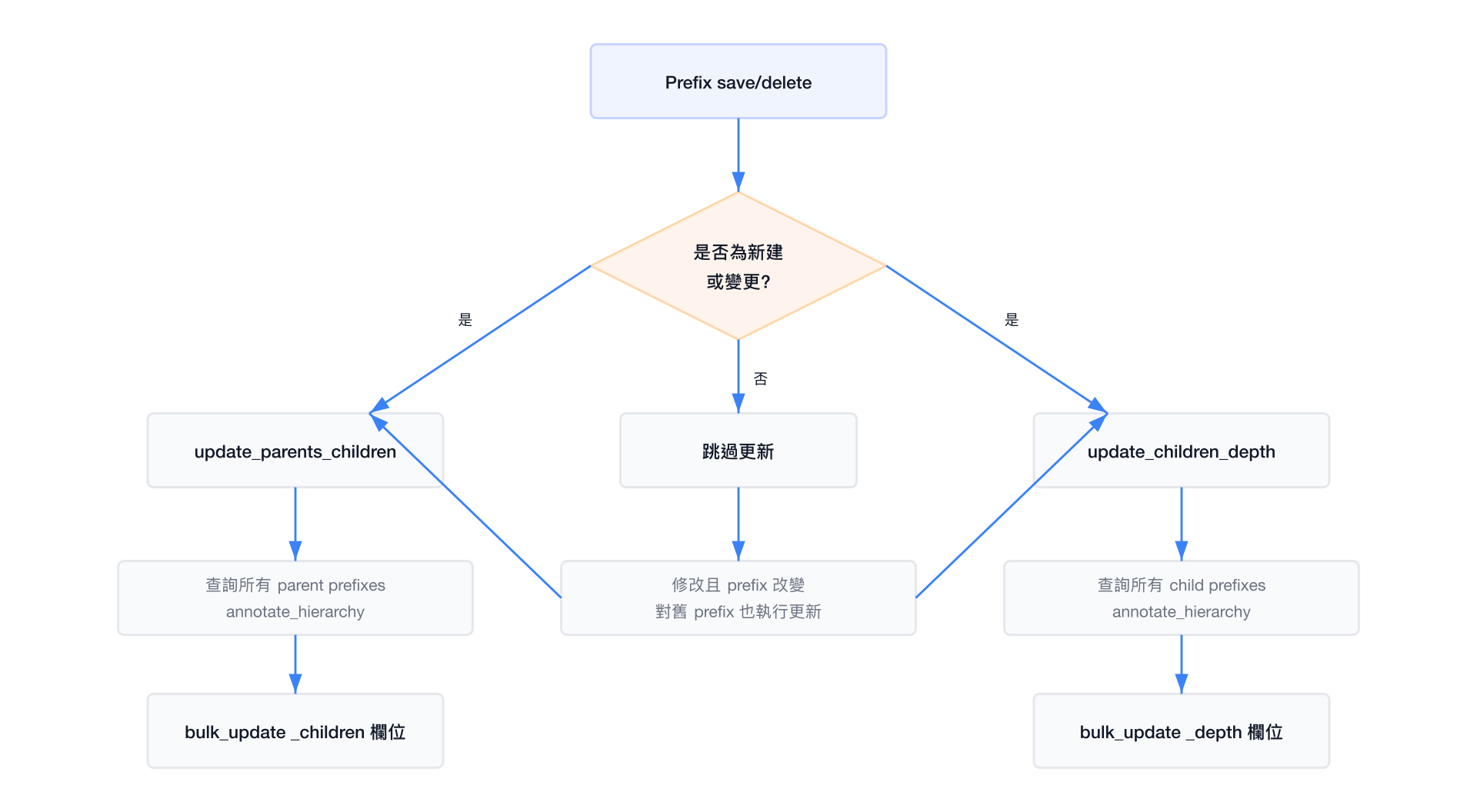

當 Prefix 建立、修改或刪除時，Django signal 會觸發 update_parents_children() 和 update_children_depth() 來更新快取：
python
# 檔案: netbox/ipam/signals.py
def update_parents_children(prefix):
"""Update depth on prefix & containing prefixes"""
parents = prefix.get_parents(include_self=True).annotate_hierarchy()
for parent in parents:
parent._children = parent.hierarchy_children
Prefix.objects.bulk_update(parents, ['_children'], batch_size=100)
def update_children_depth(prefix):
"""Update children count on prefix & contained prefixes"""
children = prefix.get_children(include_self=True).annotate_hierarchy()
for child in children:
child._depth = child.hierarchy_depth
Prefix.objects.bulk_update(children, ['_depth'], batch_size=100)
@receiver(post_save, sender=Prefix)
def handle_prefix_saved(instance, created, **kwargs):
if created or instance.vrf_id != instance._vrf_id or instance.prefix != instance._prefix:
update_parents_children(instance)
update_children_depth(instance)
# 若非新建，則清理舊 prefix 的 parent/children
if not created:
old_prefix = Prefix(vrf_id=instance._vrf_id, prefix=instance._prefix)
update_parents_children(old_prefix)
update_children_depth(old_prefix)
1.3 IP 分配演算法
get_first_available_ip() 透過 netaddr.IPSet 進行集合運算，排除已分配的 IP：
python
# 檔案: netbox/ipam/models/ip.py
def get_available_ips(self):
"""Return all available IPs within this prefix as an IPSet."""
prefix = netaddr.IPSet(self.prefix)
child_ips = netaddr.IPSet([
ip.address.ip for ip in self.get_child_ips()
])
child_ranges = netaddr.IPSet([
iprange.range for iprange in self.get_child_ranges().filter(mark_populated=True)
])
available_ips = prefix - child_ips - child_ranges
# Pool 或 /31、/32 (IPv4) / /127、/128 (IPv6) 全部可用
if (
self.is_pool
or (self.family == 4 and self.prefix.prefixlen >= 31)
or (self.family == 6 and self.prefix.prefixlen >= 127)
):
return available_ips
if self.family == 4:
# 排除網路位址與廣播位址
available_ips -= netaddr.IPSet([
netaddr.IPAddress(self.prefix.first),
netaddr.IPAddress(self.prefix.last),
])
else:
# 排除 Subnet-Router anycast address (RFC 4291)
available_ips -= netaddr.IPSet([netaddr.IPAddress(self.prefix.first)])
return available_ips
def get_first_available_ip(self):
"""Return the first available IP within the prefix (or None)."""
available_ips = self.get_available_ips()
if not available_ips:
return None
return '{}/{}'.format(next(available_ips.__iter__()), self.prefix.prefixlen)演算法複雜度分析：
get_child_ips()— O(n) 資料庫查詢，n 為 prefix 內已分配 IP 數量IPSet集合運算 — 內部使用 radix tree，合併/差集操作為 O(n log n)- 總體複雜度：O(n log n)，其中 n 為已分配 IP + IP Range 數量
同理，get_first_available_prefix() 使用 GetAvailablePrefixesMixin：
python
# 檔案: netbox/ipam/models/ip.py
class GetAvailablePrefixesMixin:
def get_available_prefixes(self):
params = {
'prefix__net_contained': str(self.prefix)
}
if hasattr(self, 'vrf'):
params['vrf'] = self.vrf
child_prefixes = Prefix.objects.filter(**params).values_list('prefix', flat=True)
return netaddr.IPSet(self.prefix) - netaddr.IPSet(child_prefixes)
def get_first_available_prefix(self):
available_prefixes = self.get_available_prefixes()
if not available_prefixes:
return None
return available_prefixes.iter_cidrs()[0]1.4 使用率計算
Prefix 使用率根據狀態區分計算策略：
python
# 檔案: netbox/ipam/models/ip.py
def get_utilization(self):
if self.mark_utilized:
return 100
if self.status == PrefixStatusChoices.STATUS_CONTAINER:
# Container 以子 prefix 佔用面積計算
queryset = Prefix.objects.filter(
prefix__net_contained=str(self.prefix), vrf=self.vrf
)
child_prefixes = netaddr.IPSet([p.prefix for p in queryset])
utilization = float(child_prefixes.size) / self.prefix.size * 100
else:
# 一般 prefix 以 IP 位址佔用計算
child_ips = netaddr.IPSet()
for iprange in self.get_child_ranges().filter(mark_utilized=True):
child_ips.add(iprange.range)
for ip in self.get_child_ips():
child_ips.add(ip.address.ip)
prefix_size = self.prefix.size
if self.prefix.version == 4 and self.prefix.prefixlen < 31 and not self.is_pool:
prefix_size -= 2 # 扣除網路位址與廣播位址
utilization = float(child_ips.size) / prefix_size * 100
return min(utilization, 100)1.5 VRF 與 Route Target
VRF 實作 RFC 4364 的虛擬路由表隔離，支援 Route Target 的 import/export 策略：
python
# 檔案: netbox/ipam/models/vrfs.py
class VRF(PrimaryModel):
name = models.CharField(max_length=100, db_collation="natural_sort")
rd = models.CharField(max_length=VRF_RD_MAX_LENGTH, unique=True, blank=True, null=True,
verbose_name=_('route distinguisher'))
enforce_unique = models.BooleanField(default=True,
help_text=_('Prevent duplicate prefixes/IP addresses within this VRF'))
import_targets = models.ManyToManyField(
to='ipam.RouteTarget', related_name='importing_vrfs', blank=True
)
export_targets = models.ManyToManyField(
to='ipam.RouteTarget', related_name='exporting_vrfs', blank=True
)
class RouteTarget(PrimaryModel):
name = models.CharField(max_length=VRF_RD_MAX_LENGTH, unique=True,
help_text=_('Route target value (formatted in accordance with RFC 4360)'))
tenant = models.ForeignKey(to='tenancy.Tenant', on_delete=models.PROTECT,
related_name='route_targets', blank=True, null=True)
erDiagram VRF ||--o{ Prefix : "contains" VRF ||--o{ IPAddress : "contains" VRF }o--o{ RouteTarget : "import_targets" VRF }o--o{ RouteTarget : "export_targets" Prefix ||--o{ IPAddress : "child IPs" Prefix ||--o{ IPRange : "child ranges" Prefix }o--|| Aggregate : "contained by" Aggregate }o--|| RIR : "belongs to"
---
## 2. DCIM (Data Center Infrastructure Management)
### 2.1 Device 模型階層

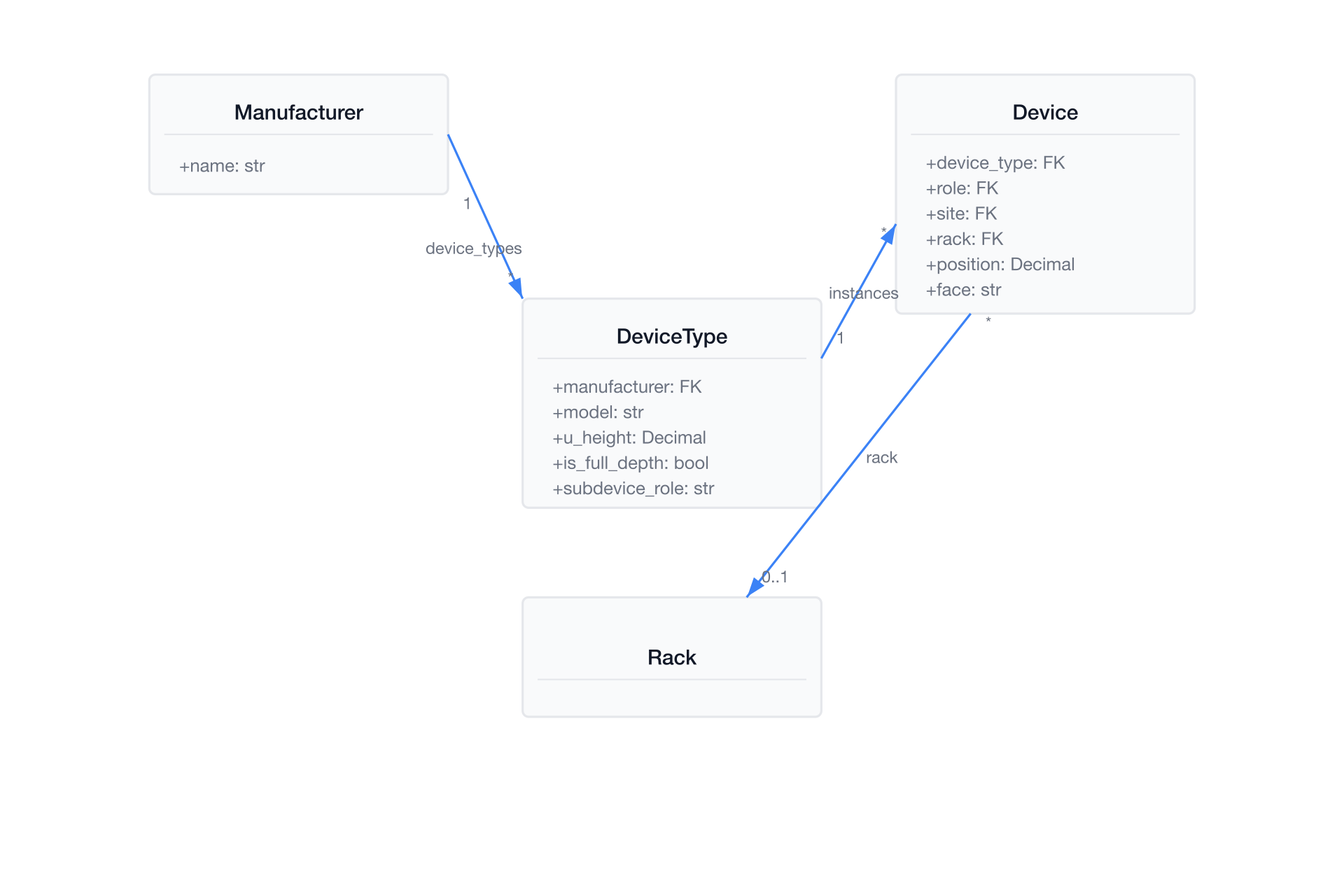

Device 透過 DeviceType → Manufacturer 形成設備型號層級。DeviceType 定義了設備的物理規格，並自動生成元件模板：
```python
# 檔案: netbox/dcim/models/devices.py
class Manufacturer(ContactsMixin, OrganizationalModel):
"""A Manufacturer represents a company which produces hardware devices."""
class Meta:
ordering = ('name',)
class DeviceType(ImageAttachmentsMixin, PrimaryModel, WeightMixin):
manufacturer = models.ForeignKey(to='dcim.Manufacturer', on_delete=models.PROTECT,
related_name='device_types')
model = models.CharField(max_length=100)
u_height = models.DecimalField(max_digits=4, decimal_places=1, default=1.0)
is_full_depth = models.BooleanField(default=True)
subdevice_role = models.CharField(max_length=50, choices=SubdeviceRoleChoices,
blank=True, null=True)
class Device(ContactsMixin, ImageAttachmentsMixin, RenderConfigMixin,
ConfigContextModel, TrackingModelMixin, PrimaryModel):
device_type = models.ForeignKey(to='dcim.DeviceType', on_delete=models.PROTECT,
related_name='instances')
role = models.ForeignKey(to='dcim.DeviceRole', on_delete=models.PROTECT,
related_name='devices')
site = models.ForeignKey(to='dcim.Site', on_delete=models.PROTECT, related_name='devices')
rack = models.ForeignKey(to='dcim.Rack', on_delete=models.PROTECT,
related_name='devices', blank=True, null=True)
position = models.DecimalField(max_digits=4, decimal_places=1, blank=True, null=True)
face = models.CharField(max_length=50, blank=True, null=True, choices=DeviceFaceChoices)
2.2 Cable Path Tracing 演算法
Cable Path Tracing 是 NetBox DCIM 中最關鍵的演算法。CablePath.from_origin() 從起點端口開始，遞迴追蹤完整的實體連線路徑：
python
# 檔案: netbox/dcim/models/cables.py
class CablePath(models.Model):
"""
path 包含有序的節點列表，每段以 (type, ID) tuple 的列表表示。
例如：
Interface 1 --- Front Port 1 | Rear Port 1 --- Rear Port 2 | Front Port 3 --- Interface 2
CablePath(path=[
[Interface 1], [Cable A],
[Front Port 1, Front Port 2], [Rear Port 1],
[Cable B], [Rear Port 2],
[Front Port 3, Front Port 4], [Cable C],
[Interface 2],
])
"""
path = models.JSONField(default=list)
is_active = models.BooleanField(default=False)
is_complete = models.BooleanField(default=False)
is_split = models.BooleanField(default=False)
_nodes = PathField()核心追蹤邏輯 — from_origin() classmethod 的八步驟演算法：
python
# 檔案: netbox/dcim/models/cables.py (CablePath.from_origin 方法)
@classmethod
def from_origin(cls, terminations):
path = []
position_stack = []
is_complete = False
is_active = True
is_split = False
segment = 0
while terminations:
segment += 1
# Step 1: 記錄近端 termination 物件
path.append([object_to_path_node(t) for t in terminations])
# Step 2: 查找所連接的 Cable 或 WirelessLink
links = list(dict.fromkeys(
t.link for t in terminations if t.link is not None
))
if len(links) == 0:
if len(path) == 1:
return None
break
# Step 3: 記錄非對稱路徑為 split
not_connected = [t.link for t in terminations if t.link is None]
if len(not_connected) > 0:
is_split = True
# Step 4: 記錄 Cable 節點
path.append([object_to_path_node(link) for link in links])
# Step 5: 若 Cable 狀態非 connected，標記為非 active
if any(s != LinkStatusChoices.STATUS_CONNECTED for s in
[l.status for l in links]):
is_active = False
# Step 6: 決定遠端 termination (Cable Profile 或 Legacy 模式)
# ... (省略 profile-based / legacy 分支)
# Step 7: 記錄遠端 termination 物件
path.append([object_to_path_node(t) for t in remote_terminations])
# Step 8: 判斷「下一跳」— FrontPort → RearPort 或反向
if isinstance(remote_terminations[0], FrontPort):
# FrontPort → 對應的 RearPort (透過 PortMapping)
terminations = [mapping.rear_port for mapping in port_mappings]
elif isinstance(remote_terminations[0], RearPort):
# RearPort → 對應的 FrontPort
terminations = [mapping.front_port for mapping in port_mappings]
elif isinstance(remote_terminations[0], CircuitTermination):
# 電路 A 端 → Z 端
terminations = CircuitTermination.objects.filter(...)
else:
is_complete = True
break
return cls(path=path, is_complete=is_complete,
is_active=is_active, is_split=is_split)
**Path Cache 與 Invalidation：**
```python
# 檔案: netbox/dcim/models/cables.py
def save(self, *args, **kwargs):
# 儲存扁平化的 nodes 列表以支援快速篩選
self._nodes = list(itertools.chain(*self.path))
super().save(*args, **kwargs)
# 在起點物件上記錄對此 CablePath 的直接參考
origin_model = self.origin_type.model_class()
origin_ids = [decompile_path_node(node)[1] for node in self.path[0]]
origin_model.objects.filter(pk__in=origin_ids).update(_path=self.pk)
def retrace(self):
"""從現有的起點重新追蹤路徑"""
_new = self.from_origin(self.origins)
if _new:
self.path = _new.path
self.is_complete = _new.is_complete
self.is_active = _new.is_active
self.is_split = _new.is_split
self.save()
else:
self.delete()演算法複雜度分析：
- 追蹤演算法為迴圈結構，每次迭代處理一條 Cable + 兩端 termination
- 時間複雜度：O(S × T)，S 為路徑段數 (cable 數量)，T 為每段的 termination 數量
- PortMapping 查詢使用資料庫 index，為 O(1) 量級
position_stack作為堆疊結構追蹤多對多 port 映射，避免重複遍歷
2.3 Rack Elevation
Rack 透過 u_height 定義高度，get_rack_units() 產生完整的 U 位對照表：
python
# 檔案: netbox/dcim/models/racks.py
def get_rack_units(self, user=None, face=DeviceFaceChoices.FACE_FRONT,
exclude=None, expand_devices=True):
elevation = {}
for u in self.units:
u_name = f'U{u}'.split('.')[0] if not u % 1 else f'U{u}'
elevation[u] = {
'id': u, 'name': u_name, 'face': face,
'device': None, 'occupied': False
}
if not self._state.adding:
devices = Device.objects.prefetch_related(
'device_type', 'device_type__manufacturer', 'role'
).filter(rack=self, position__gt=0, device_type__u_height__gt=0
).filter(Q(face=face) | Q(device_type__is_full_depth=True))
for device in devices:
if expand_devices:
for u in drange(device.position,
device.position + device.device_type.u_height, 0.5):
elevation[u]['device'] = device
elevation[u]['occupied'] = True
return [u for u in elevation.values()]
def get_available_units(self, u_height=1.0, rack_face=None, exclude=None,
ignore_excluded_devices=False):
units = list(self.units)
for d in devices:
if rack_face is None or d.face == rack_face or d.device_type.is_full_depth:
for u in drange(d.position, d.position + d.device_type.u_height, 0.5):
try:
units.remove(u)
except ValueError:
pass # 機櫃內設備重疊
# 移除空間不足的 unit
available_units = []
for u in units:
if set(drange(u, u + decimal.Decimal(u_height), 0.5)).issubset(units):
available_units.append(u)
return list(reversed(available_units))
def get_utilization(self):
total_units = len(list(self.units))
available_units = self.get_available_units(u_height=0.5, ignore_excluded_devices=True)
for ru in self.get_reserved_units():
for u in drange(ru, ru + 1, 0.5):
if u in available_units:
available_units.remove(u)
occupied_unit_count = total_units - len(available_units)
return float(occupied_unit_count) / total_units * 1002.4 Power Tracking
PowerFeed 模擬電力迴路，自動計算可用功率：
python
# 檔案: netbox/dcim/models/power.py
class PowerFeed(PrimaryModel, PathEndpoint, CabledObjectModel):
power_panel = models.ForeignKey(to='PowerPanel', on_delete=models.PROTECT)
rack = models.ForeignKey(to='Rack', on_delete=models.PROTECT, blank=True, null=True)
voltage = models.SmallIntegerField(default=ConfigItem('POWERFEED_DEFAULT_VOLTAGE'))
amperage = models.PositiveSmallIntegerField(default=ConfigItem('POWERFEED_DEFAULT_AMPERAGE'))
max_utilization = models.PositiveSmallIntegerField(
default=ConfigItem('POWERFEED_DEFAULT_MAX_UTILIZATION'))
available_power = models.PositiveIntegerField(default=0, editable=False)
phase = models.CharField(max_length=50, choices=PowerFeedPhaseChoices,
default=PowerFeedPhaseChoices.PHASE_SINGLE)
def save(self, *args, **kwargs):
# 計算可用功率: kVA = |V| × A × (max_util / 100)
kva = abs(self.voltage) * self.amperage * (self.max_utilization / 100)
if self.phase == PowerFeedPhaseChoices.PHASE_3PHASE:
self.available_power = round(kva * 1.732) # √3 倍率
else:
self.available_power = round(kva)
super().save(*args, **kwargs)3. Custom Fields 系統
NetBox 的 Custom Fields 允許使用者在不修改原始碼的情況下，為任何模型新增自訂欄位。
3.1 CustomField 模型
python
# 檔案: netbox/extras/models/customfields.py
class CustomField(CloningMixin, ExportTemplatesMixin, OwnerMixin, ChangeLoggedModel):
object_types = models.ManyToManyField(to='contenttypes.ContentType',
related_name='custom_fields')
type = models.CharField(max_length=50, choices=CustomFieldTypeChoices,
default=CustomFieldTypeChoices.TYPE_TEXT)
related_object_type = models.ForeignKey(to='contenttypes.ContentType',
on_delete=models.PROTECT, blank=True, null=True)
name = models.CharField(max_length=50, unique=True, validators=(
RegexValidator(regex=r'^[a-z0-9_]+$'),
RegexValidator(regex=r'__', inverse_match=True),
))
required = models.BooleanField(default=False)
unique = models.BooleanField(default=False)
search_weight = models.PositiveSmallIntegerField(default=1000)
filter_logic = models.CharField(max_length=50, choices=CustomFieldFilterLogicChoices)
default = models.JSONField(blank=True, null=True)
validation_minimum = models.DecimalField(max_digits=16, decimal_places=4,
blank=True, null=True)
validation_maximum = models.DecimalField(max_digits=16, decimal_places=4,
blank=True, null=True)
validation_regex = models.CharField(blank=True, max_length=500)
choice_set = models.ForeignKey(to='CustomFieldChoiceSet', on_delete=models.PROTECT,
blank=True, null=True)
objects = CustomFieldManager()支援的類型包括：text, longtext, integer, decimal, boolean, date, datetime, url, json, select, multiselect, object, multiobject。
3.2 CustomFieldsMixin — 掛載機制
所有支援 Custom Fields 的模型都繼承 CustomFieldsMixin，資料以 JSON 格式儲存在 custom_field_data 欄位中：
python
# 檔案: netbox/netbox/models/features.py
class CustomFieldsMixin(models.Model):
custom_field_data = models.JSONField(
encoder=CustomFieldJSONEncoder,
blank=True,
default=dict
)
class Meta:
abstract = True
@cached_property
def cf(self):
"""回傳自訂欄位名稱與反序列化值的字典"""
return {
cf.name: cf.deserialize(self.custom_field_data.get(cf.name))
for cf in self.custom_fields
}
@cached_property
def custom_fields(self):
from extras.models import CustomField
return CustomField.objects.get_for_model(self)3.3 CustomFieldManager — 查詢快取
CustomFieldManager 使用 request-level cache 避免重複查詢：
python
# 檔案: netbox/extras/models/customfields.py
class CustomFieldManager(models.Manager.from_queryset(RestrictedQuerySet)):
def get_for_model(self, model):
cache = query_cache.get()
if cache is not None:
if custom_fields := cache['custom_fields'].get(model._meta.model):
return custom_fields
content_type = ObjectType.objects.get_for_model(model._meta.concrete_model)
custom_fields = self.get_queryset().filter(
object_types=content_type
).select_related('related_object_type')
if cache is not None:
cache['custom_fields'][model._meta.model] = custom_fields
return custom_fields flowchart LR A[Model Instance] -->|custom_field_data JSON| B[CustomFieldsMixin.cf] B --> C[CustomFieldManager.get_for_model] C --> D{Request Cache 命中?} D -->|是| E[回傳快取結果] D -->|否| F[查詢 DB] F --> G[寫入 Request Cache] G --> E E --> H[逐一 deserialize] H --> I["{'field_name': value}"]
---
## 4. Change Logging
NetBox 透過 `ObjectChange` 模型記錄所有物件的變更歷史，包含完整的 pre/post 快照。
### 4.1 ObjectChange 模型
```python
# 檔案: netbox/core/models/change_logging.py
class ObjectChange(models.Model):
time = models.DateTimeField(auto_now_add=True, db_index=True)
user = models.ForeignKey(to=settings.AUTH_USER_MODEL, on_delete=models.SET_NULL,
blank=True, null=True)
user_name = models.CharField(max_length=150, editable=False)
request_id = models.UUIDField(editable=False, db_index=True)
action = models.CharField(max_length=50, choices=ObjectChangeActionChoices)
changed_object_type = models.ForeignKey(to='contenttypes.ContentType',
on_delete=models.PROTECT)
changed_object_id = models.PositiveBigIntegerField()
changed_object = GenericForeignKey(ct_field='changed_object_type',
fk_field='changed_object_id')
prechange_data = models.JSONField(editable=False, blank=True, null=True)
postchange_data = models.JSONField(editable=False, blank=True, null=True)
def diff(self):
prechange_data = self.prechange_data_clean
postchange_data = self.postchange_data_clean
if self.action == ObjectChangeActionChoices.ACTION_CREATE:
changed_attrs = sorted(postchange_data.keys())
elif self.action == ObjectChangeActionChoices.ACTION_DELETE:
changed_attrs = sorted(prechange_data.keys())
else:
changed_data = shallow_compare_dict(prechange_data, postchange_data)
changed_attrs = sorted(changed_data.keys())
return {
'pre': {k: prechange_data.get(k) for k in changed_attrs},
'post': {k: postchange_data.get(k) for k in changed_attrs},
}4.2 Snapshot 機制
ChangeLoggingMixin.snapshot() 在物件修改前拍攝快照，to_objectchange() 在修改後建立變更記錄：
python
# 檔案: netbox/netbox/models/features.py
class ChangeLoggingMixin(models.Model):
def snapshot(self):
"""在修改前拍攝物件快照，儲存為 _prechange_snapshot"""
exclude_fields = []
if get_config().CHANGELOG_SKIP_EMPTY_CHANGES:
exclude_fields = ['last_updated']
self._prechange_snapshot = self.serialize_object(exclude=exclude_fields)
def to_objectchange(self, action):
objectchange = ObjectChange(
changed_object=self,
object_repr=str(self)[:200],
action=action,
message=self._changelog_message or '',
)
if hasattr(self, '_prechange_snapshot'):
objectchange.prechange_data = self._prechange_snapshot
if action in (ACTION_CREATE, ACTION_UPDATE):
self._postchange_snapshot = self.serialize_object(exclude=exclude)
objectchange.postchange_data = self._postchange_snapshot
return objectchange4.3 Event Tracking Context Manager
Request 層級的事件追蹤透過 event_tracking context manager 實現，在 middleware 中自動套用：
python
# 檔案: netbox/netbox/context_managers.py
@register_request_processor
@contextmanager
def event_tracking(request):
"""在處理 request 時佇列事件，完成後統一 flush"""
current_request.set(request)
events_queue.set({})
query_cache.set(defaultdict(dict))
yield
# 將佇列中的 webhook 送往 RQ
if events := list(events_queue.get().values()):
flush_events(events)
current_request.set(None)
events_queue.set({})
query_cache.set(None) sequenceDiagram participant Client participant Middleware as CoreMiddleware participant EventTracking as event_tracking participant View participant Model participant ObjectChange as ObjectChange
Client->>Middleware: HTTP Request
Middleware->>EventTracking: enter context
EventTracking->>EventTracking: set request_id, init queue
Middleware->>View: process request
View->>Model: snapshot() — 拍攝 prechange
View->>Model: save()
Model->>ObjectChange: to_objectchange(UPDATE)
ObjectChange->>ObjectChange: 儲存 pre/post data
View-->>Middleware: response
EventTracking->>EventTracking: flush_events() — 發送 webhook
Middleware-->>Client: HTTP Response + X-Request-ID
---
## 5. Custom Scripts & Reports
### 5.1 Script 執行框架
使用者自訂的 Script 繼承 `BaseScript`，透過 `ScriptModule` (proxy model of `ManagedFile`) 載入：
```python
# 檔案: netbox/extras/scripts.py
class BaseScript:
def __init__(self):
self.messages = []
self.tests = {}
self.output = ''
self.failed = False
self.logger = logging.getLogger(
f"netbox.scripts.{self.__module__}.{self.__class__.__name__}"
)
self.request = None
self.storage = storages.create_storage(storages.backends["scripts"])
def run(self, data, commit):
"""Override this method with custom script logic."""
self.pre_run()
self.run_tests()
self.post_run()
def log_info(self, message=None, obj=None):
self._log(message, obj, level=LogLevelChoices.LOG_INFO)
def log_success(self, message=None, obj=None):
self._log(message, obj, level=LogLevelChoices.LOG_SUCCESS)
def log_warning(self, message=None, obj=None):
self._log(message, obj, level=LogLevelChoices.LOG_WARNING)
def log_failure(self, message=None, obj=None):
self._log(message, obj, level=LogLevelChoices.LOG_FAILURE)
self.failed = True5.2 ScriptModule 載入
ScriptModule 是 ManagedFile 的 proxy model，自動篩選 scripts 和 reports 目錄下的檔案：
python
# 檔案: netbox/extras/models/scripts.py
class ScriptModuleManager(models.Manager.from_queryset(RestrictedQuerySet)):
def get_queryset(self):
return super().get_queryset().filter(
Q(file_root=ManagedFileRootPathChoices.SCRIPTS) |
Q(file_root=ManagedFileRootPathChoices.REPORTS)
)
class ScriptModule(PythonModuleMixin, JobsMixin, ManagedFile):
objects = ScriptModuleManager()
class Script(EventRulesMixin, JobsMixin):
name = models.CharField(max_length=79, editable=False)
module = models.ForeignKey(to='extras.ScriptModule', on_delete=models.CASCADE,
related_name='scripts')
is_executable = models.BooleanField(default=True)
@cached_property
def python_class(self):
return self.module.module_scripts.get(self.name) flowchart TD A[ScriptModule
ManagedFile proxy] -->|載入 Python 模組| B[module_scripts dict] B -->|get by name| C[Script model] C -->|python_class| D[BaseScript subclass] D -->|run| E[執行自訂邏輯] E -->|log_*| F[messages list] E -->|commit=True| G[DB Transaction] G --> H[Job 記錄完成狀態] F --> H
---
## 6. Search 系統
### 6.1 CachedValue 模型
搜尋系統基於預先快取的 `CachedValue` 記錄，每個可搜尋欄位產生一筆：
```python
# 檔案: netbox/extras/models/search.py
class CachedValue(models.Model):
id = models.UUIDField(primary_key=True, default=uuid.uuid4)
timestamp = models.DateTimeField(auto_now_add=True)
object_type = models.ForeignKey(to='contenttypes.ContentType', on_delete=models.CASCADE)
object_id = models.PositiveBigIntegerField()
object = RestrictedGenericForeignKey(ct_field='object_type', fk_field='object_id')
field = models.CharField(max_length=200)
type = models.CharField(max_length=30) # STRING, INTEGER, FLOAT, CIDR, INET
value = CachedValueField()
weight = models.PositiveSmallIntegerField(default=1000)6.2 CachedValueSearchBackend
搜尋後端使用 Window Function 進行去重，並特別處理 IP/CIDR 搜尋：
python
# 檔案: netbox/netbox/search/backends.py
class CachedValueSearchBackend(SearchBackend):
def search(self, value, user=None, object_types=None, lookup=DEFAULT_LOOKUP_TYPE):
query_filter = Q(**{f'value__{lookup}': value})
if object_types:
query_filter &= Q(object_type__in=object_types)
# IP 位址特殊搜尋
if lookup in (LookupTypes.PARTIAL, LookupTypes.EXACT):
try:
address = str(netaddr.IPNetwork(value.strip()).cidr)
query_filter |= Q(type=FieldTypes.INET) & Q(value__net_host=address)
if lookup == LookupTypes.PARTIAL:
query_filter |= (Q(type=FieldTypes.CIDR) &
Q(value__net_contains_or_equals=address))
except (AddrFormatError, ValueError):
pass
# Window function 去重：每個物件只保留最低 weight 的結果
queryset = CachedValue.objects.filter(query_filter).annotate(
row_number=Window(
expression=window.RowNumber(),
partition_by=[F('object_type'), F('object_id')],
order_by=[F('weight').asc()],
)
)[:MAX_RESULTS]
# 包裝為子查詢，只回傳 row_number = 1 的結果
sql, params = queryset.query.sql_with_params()
results = CachedValue.objects.prefetch_related(*prefetch).raw(
f"SELECT * FROM ({sql}) t WHERE row_number = 1",
params
)
return [r for r in results if r.object is not None]6.3 搜尋快取更新
透過 Django 的 post_save / post_delete signal 自動維護：
python
# 檔案: netbox/netbox/search/backends.py
def cache(self, instances, indexer=None, remove_existing=True):
buffer = []
counter = 0
for instance in instances:
if not counter:
if indexer is None:
indexer = get_indexer(instance)
custom_fields = [
cf for cf in CustomField.objects.get_for_model(indexer.model)
if cf.search_weight > 0
]
if remove_existing:
self.remove(instance)
object_type = ObjectType.objects.get_for_model(indexer.model)
for field in indexer.to_cache(instance, custom_fields=custom_fields):
buffer.append(CachedValue(
object_type=object_type, object_id=instance.pk,
field=field.name, type=field.type,
weight=field.weight, value=field.value
))
if len(buffer) >= 2000:
counter += len(CachedValue.objects.bulk_create(buffer))
buffer = []
if buffer:
counter += len(CachedValue.objects.bulk_create(buffer))
return counter
# Signal 連接
post_save.connect(search_backend.caching_handler)
post_delete.connect(search_backend.removal_handler) flowchart LR A[物件 save/delete] -->|post_save signal| B[caching_handler] B --> C{remove_existing?} C -->|是| D[刪除舊 CachedValue] D --> E[indexer.to_cache] C -->|否| E E --> F[產生 CachedValue 記錄] F --> G[bulk_create buffer] G -->|buffer ≥ 2000| H[flush to DB]
I[搜尋請求] --> J[CachedValueSearchBackend.search]
J --> K[建構 Q filter]
K --> L{值像 IP?}
L -->|是| M[加入 INET/CIDR 條件]
L -->|否| N[標準文字搜尋]
M --> O[Window RowNumber 去重]
N --> O
O --> P[回傳 weight 最低的結果]
---
## 7. Tags & Bookmarks
### 7.1 Tag 系統
NetBox 的 Tag 基於 `django-taggit`，並擴展支援顏色、權重和物件類型限制：
```python
# 檔案: netbox/extras/models/tags.py
class Tag(CloningMixin, ExportTemplatesMixin, OwnerMixin, ChangeLoggedModel, TagBase):
id = models.BigAutoField(primary_key=True)
color = ColorField(default=ColorChoices.COLOR_GREY)
description = models.CharField(max_length=200, blank=True)
object_types = models.ManyToManyField(to='contenttypes.ContentType',
related_name='+', blank=True)
weight = models.PositiveSmallIntegerField(default=1000)
class TaggedItem(GenericTaggedItemBase):
tag = models.ForeignKey(to=Tag, related_name="%(app_label)s_%(class)s_items",
on_delete=models.CASCADE)TagsMixin 提供給所有需要 tag 功能的模型：
python
# 檔案: netbox/netbox/models/features.py
class TagsMixin(models.Model):
tags = TaggableManager(
through='extras.TaggedItem',
ordering=('weight', 'name'),
manager=NetBoxTaggableManager,
)
class Meta:
abstract = True7.2 Bookmark 系統
Bookmark 讓使用者收藏任意物件，透過 GenericForeignKey 關聯：
python
# 檔案: netbox/extras/models/models.py
class Bookmark(models.Model):
created = models.DateTimeField(auto_now_add=True)
object_type = models.ForeignKey(to='contenttypes.ContentType', on_delete=models.PROTECT)
object_id = models.PositiveBigIntegerField()
object = GenericForeignKey(ct_field='object_type', fk_field='object_id')
user = models.ForeignKey(to=settings.AUTH_USER_MODEL, on_delete=models.CASCADE)
class Meta:
constraints = (
models.UniqueConstraint(
fields=('object_type', 'object_id', 'user'),
name='%(app_label)s_%(class)s_unique_per_object_and_user'
),
)8. Dashboard & Notifications
8.1 Dashboard Widget 系統
Dashboard 以 JSON 儲存 layout 和 config，支援 gridstack.js 前端渲染：
python
# 檔案: netbox/extras/models/dashboard.py
class Dashboard(models.Model):
user = models.OneToOneField(to='users.User', on_delete=models.CASCADE)
layout = models.JSONField(default=list) # gridstack 位置資訊
config = models.JSONField(default=dict) # widget 類型與配置
def get_widget(self, id):
config = dict(self.config[id])
widget_class = get_widget_class(config.pop('class'))
return widget_class(id=id, **config)
def add_widget(self, widget, x=None, y=None):
self.config[str(widget.id)] = {
'class': widget.name, 'title': widget.title,
'color': widget.color, 'config': widget.config,
}
self.layout.append({
'id': str(widget.id), 'h': widget.height,
'w': widget.width, 'x': x, 'y': y,
})內建 Widget 類型包括：
python
# 檔案: netbox/extras/dashboard/widgets.py
class DashboardWidget:
description = None
default_title = None
default_config = {}
width = 4
height = 3
def render(self, request):
raise NotImplementedError
# 內建 Widget：
# - NoteWidget: 顯示自訂 Markdown 內容
# - ObjectCountsWidget: 顯示物件數量統計
# - ObjectListWidget: 顯示物件列表
# - RSSFeedWidget: 顯示 RSS feed
# - BookmarksWidget: 顯示使用者書籤8.2 Notification & Subscription
Notification 系統讓使用者接收物件變更通知，支援群組通知：
python
# 檔案: netbox/extras/models/notifications.py
class Notification(models.Model):
created = models.DateTimeField(auto_now_add=True)
read = models.DateTimeField(null=True, blank=True)
user = models.ForeignKey(to=settings.AUTH_USER_MODEL, on_delete=models.CASCADE)
object_type = models.ForeignKey(to='contenttypes.ContentType', on_delete=models.PROTECT)
object_id = models.PositiveBigIntegerField()
event_type = models.CharField(max_length=50, choices=get_event_type_choices)
class Subscription(models.Model):
"""使用者對特定物件的訂閱"""
user = models.ForeignKey(to=settings.AUTH_USER_MODEL, on_delete=models.CASCADE)
object_type = models.ForeignKey(to='contenttypes.ContentType', on_delete=models.PROTECT)
object_id = models.PositiveBigIntegerField()
class NotificationGroup(ChangeLoggedModel):
"""通知群組 — 聚合多個使用者與群組"""
name = models.CharField(max_length=100, unique=True)
groups = models.ManyToManyField(to='users.Group', blank=True)
users = models.ManyToManyField(to='users.User', blank=True)
def notify(self, object_type, object_id, **kwargs):
for user in self.members:
Notification.objects.update_or_create(
object_type=object_type, object_id=object_id,
user=user, defaults=kwargs
) flowchart TD A[物件變更事件] --> B{Subscription 存在?} B -->|是| C[建立 Notification] B -->|否| D[檢查 EventRule] D -->|匹配| E[NotificationGroup.notify] E --> F[為每位 member 建立 Notification] C --> G[使用者 Dashboard] F --> G G --> H[標記已讀 / 未讀]
---
## 小結
NetBox 的核心功能設計展現了幾個重要的工程原則：
| 功能模組 | 關鍵設計模式 | 複雜度特徵 |
|---------|------------|-----------|
| **IPAM Prefix** | PostgreSQL `inet_ops` GiST Index + `netaddr.IPSet` 集合運算 | IP 分配 O(n log n) |
| **Cable Path Tracing** | 迭代式追蹤 + position_stack 堆疊 + JSON path 快取 | O(S × T)，S=段數, T=端點數 |
| **Custom Fields** | `JSONField` + `GenericForeignKey` + request-level cache | 查詢 O(1) (快取命中) |
| **Change Logging** | snapshot/restore 模式 + context manager 自動追蹤 | 每次寫入 O(1) |
| **Search** | Window Function 去重 + CIDR/INET 多型搜尋 + bulk_create buffer | 搜尋 O(n)，快取 O(batch) |
| **Notifications** | `GenericForeignKey` + Subscription 訂閱 + 群組擴展 | 通知 O(members) |
這些模組透過 Django 的 signal、context manager、abstract mixin 等機制緊密協作，形成一個可擴展且高效能的資料中心管理平台。
